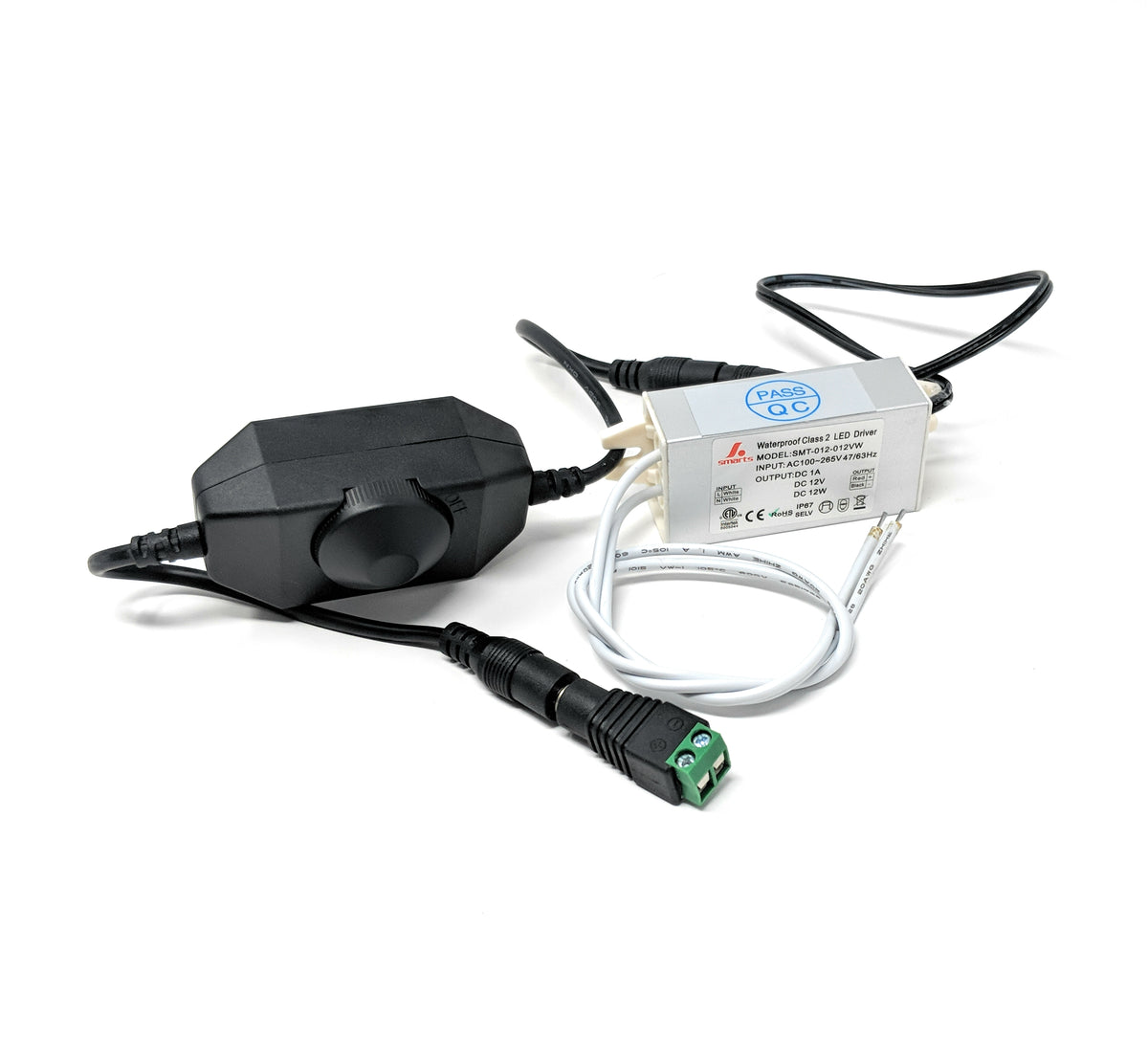

Wiring Diagram using the JELSCO LED Driver with Dimmer
- 1. Connect LED Driver to power source.
- This will be the standard power you have in your home generally 120 Volts
- 2. Plug in dimmer
- This is optional and can be left out
- 3. Connect Numbers
- Connect all Red wires into a wiring nut with a lead to the connector
- Connect all Blue wires into a wiring nut with a lead to the connector
With Wire in LED Driver
With Plug in LED Driver
The rest of the install
This diagram covers the wiring. Mounting, spacing and the drilling template are in the install guide. One 12V DC driver runs up to seven 4 inch digits, six 6 or 8 inch, or four 12 inch, so count your digits before you order.
